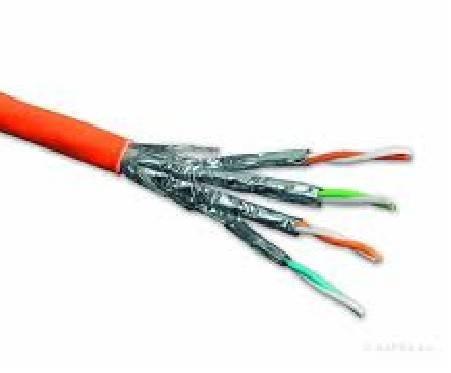

Cat 7 SSTP cable indoor

Product Description:

ndoor cat7 4-pair shielded twisted pair shielded twisted pair

Executive standards:

YD/T1019, ISO/IEC 11801, TIA/EIA568-C

Structure:

Diameter of copper cable	0.643mm
Diameter of insulated wire	1.2mm
Insulation mark	Orange, orange white, blue, blue white, green, green white, brown, brown white
Sheath thickness	0.68±0.2mm
Sheath diameter	8.1±0.2mm
Sheath material	PVC (Polyvinyl Chloride)
Rip cord	Three-ply twisting
Standard weight of cable	24KG/disc±0.2
Cable package	305m/ disc

Installation:

Minimum bending radius (dynamic)	32.4mm
Minimum bending radius (static)	64.8mm
Maximum tension for installation	25N/P
Working temperature	-20℃-+70℃
Installation temperature	-0℃-+40℃

Electrical characteristics:

DC resistance	≤9.5Ω/100m
Pair DC resistance unbalance	≤2.5%
Working capacitance	≤5.6nF/100m
Characteristic impedance	100±15Ω

Product information:

Product description	Product model	Sheath material	STANDARD PACKING
Indoor cat7e 4-pair shielded twisted pair	SSTP-11-7-4P	PVC:	305m/ disc
Indoor cat7e 4-pair low-smoke zero-halogen shielded twisted pair	SSTP-21-7-4P	LSZH	305m/ disc
