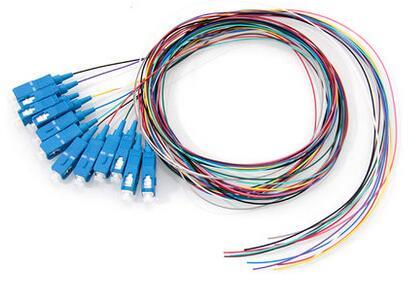

Optical fiber pigtail
Executive standards:
YD/T 926.3, IEC 60332-3C, IEC 60754-2, IEC 61034-2
Product characteristics:
l Owning various types of joints, as well as single-mode, multi-mode and other specifications
l Optical fiber end face adopts high-precision grinding, owning highest connection performance, and lowest insertion loss
l The mechanical performance meets IEC 874-7, EN 50173, TIA/EIA568C and relevant requirements;
l Insertion loss of less than 0.3dB
l The return loss is higher than 50dB
l Each pigtail could pass the test, with the passing rate of 100%;
Product information:
|
Product description |
Product model |
Product specification |
Sheath material |
|
SC-type single mode pigtail (single-end) 1M |
FF-SC-B1-1M |
9/125μm |
PVC: |
|
SC-type multi-mode pigtail (single-end) 1M |
FF-SC-A1b-1M |
62.5/125μm |
PVC: |
|
SC-type 10G multi-mode pigtail (single-end) 1M |
FF-SC-A1a-OM3-1M |
50/125μm |
PVC: |
|
LC-type single-mode pigtail (single-end) 1M |
FF-LC-B1-1M |
9/125μm |
PVC: |
|
LC-type multi-mode pigtail (single-end) 1M |
FF-LC-A1b-1M |
62.5/125μm |
PVC: |
|
LC-type 10G multi-mode pigtail (single-end) 1M |
FF-LC-A1a-OM3-1M |
50/125μm |
PVC: |
Note: products of other joints and different lengths can be customized
