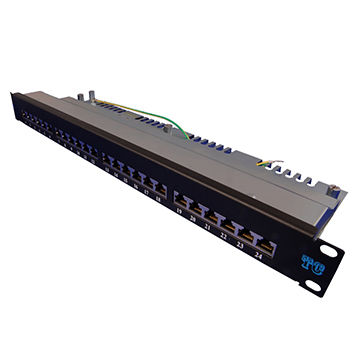

24-port cat6e shielded distribution frame

Product Description:

24-port cat6e shielded distribution frame

Executive standards:

YD/T926.3, ISO/IEC 11801, TIA/EIA568-C

Product characteristics:

l 24-port modular design, convenient for assembly and disassembly

l Adopting full zinc alloy module housing, to ensure the products of 360° all-dimensional shielding

l The frame has shielded ground terminal and conductor, to ensure the shielded frame could soundly contact with the ground

l 50 micro-inch gold plating needle

l Plug times>2000 times

l Termination times>750 times

l Accepting 22-26 wire-gauge cables

l Supporting 500MHz bandwidth

Product information:

Product description	Product model	Unit	Remarks
24-port cat6e shielded distribution frame	PP-21-6A-24	Piece	Including module and tab
