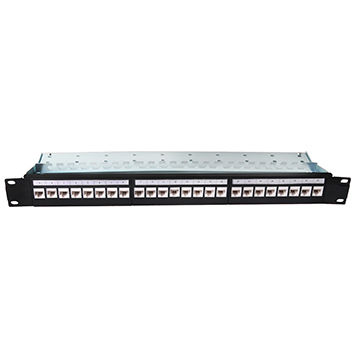

24-port cat5e unshielded distribution frame

Product Description:

24-port cat5e unshielded distribution frame

Executive standards:

YD/T926.3, ISO/IEC 11801, TIA/EIA568-C

Product characteristics:

l 24-port modular design, convenient for assembly and disassembly

l Adopting rear-wiring tray to ensure the regularity and bending radius of the cables

l Tab bar shall be integrated with the distribution frame for convenient and neat layout

l The support of distribution frame shall adopt high-quality cold-roll steel sheets, for anti-static treatment

l 50 micro-inch gold plating needle

l Plug times>2000 times

l Termination times>750 times

l Accepting 22-26 wire-gauge cables

l Supporting 100MHz bandwidth

Product information:

Product description	Product model	Unit	Remarks
24-port cat5e unshielded distribution frame	PP-12-5E-24	Piece	Including module and tab
